품명
MODEL |
무선 송신기 (RF Client)
DRF-C200 |
중계 수신기 (RF Bridge)
DRF-B200 |
메인 중계기 (RF Gateway)
DRF-G200 |
| IMAGE |
 |
 |
 |
| Input Signal |
Contact INPUT (Relay/TR) |
RF-DATA (Dual-RF/2CH) |
Serial-DATA , Multiple 4CH |
| Output Signal |
RF-DATA |
Serial-DATA (RS-422/485) |
Formatted RF-DATA |
Operation
Power |

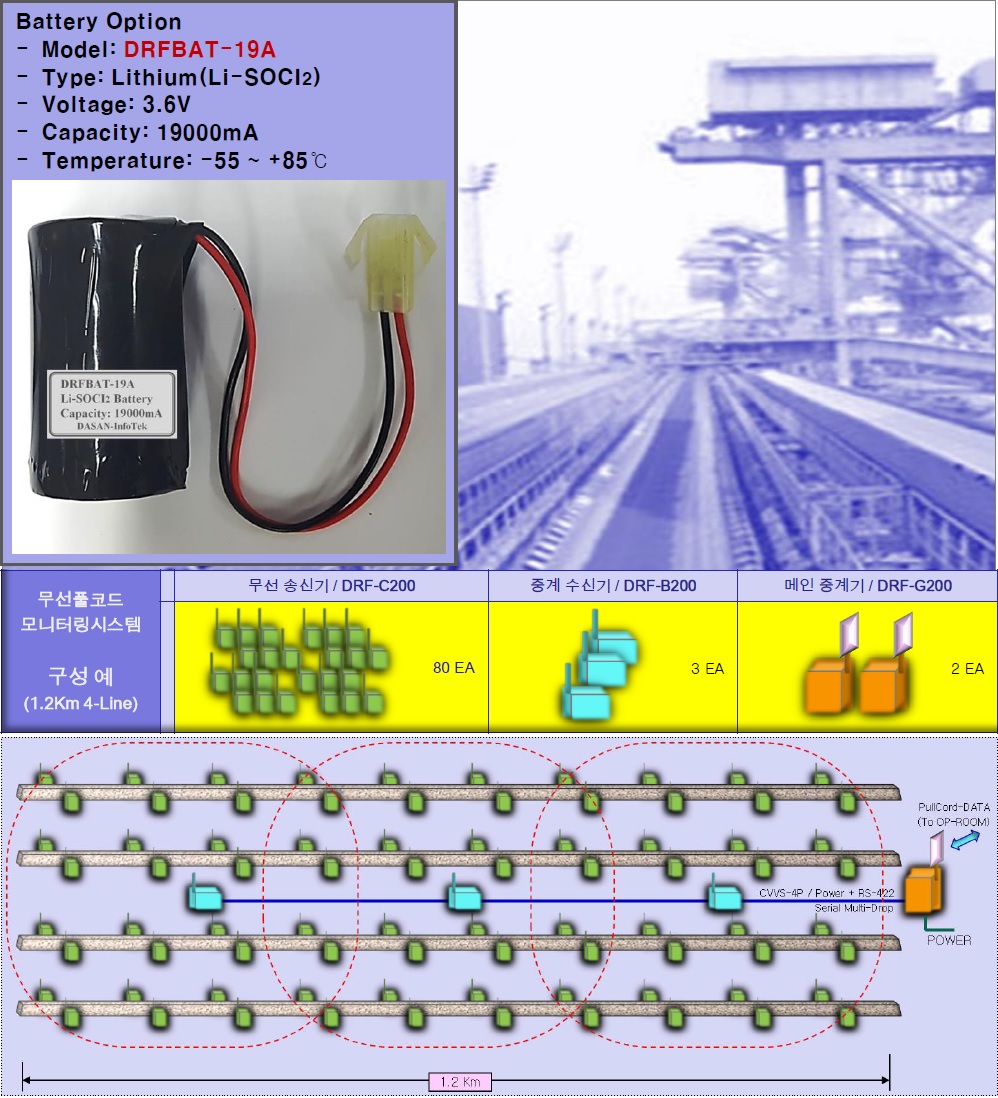

Lithium Battery : 3year/Min
(SOLAR Option : 5year/Min) |
DC/AC Power
(24~48 VDC / 90~240VAC) |
AC Power
(90~240VAC) |
| Support Clients |
1:1 |
128 Clients |
512 Clients |
| RF Frequency |
424 / 447 [MHz] (데이타전송용 특정소출력 승인 주파수) |
| RF Distance |
300M/min~1500M/max (불가시 300M, 가시 1500M) |
| Dimension |
130x180x60 |
200x300x110 |
200x300x110 |
| Features |
Sleep/Walkup Cycle Transmission
Multiple RF Channel Redundancy
Battery Status Monitoring |
Hi-speed DATA Relay
Dual RF Channel Redundancy
|
Hi-speed DATA Gateway
Dual RF Channel Redundancy
|
