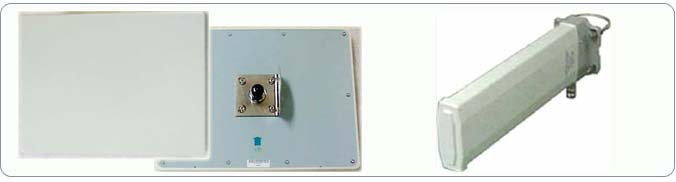

| Electronic Specification |
주파수 / Operating Frequency (MHz)
구조 / Type
VSWR
출력 이득 / Gain (dBi)
Polarization
Front-to-Back Ratio (dB)
방사 각도 / 3 dB Beamwidth (degree)
Cross Polarization for LP (dB)
Axial Ratio for LHCP
콘넥터 / Output Connector
임피던스 / Output Impedance (ohm)
|
: 2400-2500 MHz
: Strip Yagi
: 1 : 1.5 Typ.
: 13 Typ.
: Vertical
: 23 min.
: 35 x 35
: 20 min.
: 3.0dB max.
: N-Type (F)
: 50
|
|
|
| |
|
| Mechanical Specification |
크기 / Antenna Size (mm)
풍속 / Operational Winds (Km/h)
수직 설치 각도 / Elevation Adjustment Range
수평 설치 각도 / Azimuth Adjustment Range
설치 구조 / Fixed mount type
|
: 355 x 107 x 82
: Max. 120
: Pole Mount Angle
: 360 degree, manual
: Pole mount (30~50mm)
|
|
|
| |
| |
|
